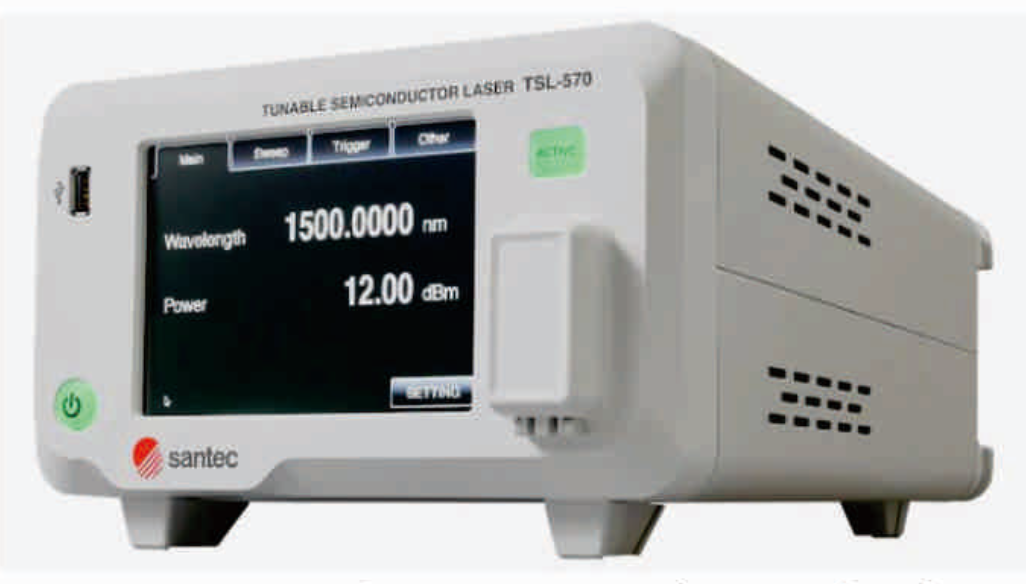

Santec’s all-new TSL-570 leverages 33 years of the company’s experience in tunable laser manufacturing. As a High Performance Tunable Laser, the TSL-570 features a wide tuning range and output, combining high power with a high signal-to-noise ratio (SNR). It adopts a new optical cavity design, boasting precise speed control of up to 200 nm/s, along with sub-picometer resolution and accuracy.
Tunable Lasers are widely used in photonics for optical component characterization, photonic integrated circuit (PIC) testing, quantum photonics, spectroscopy, and sensors. Santec’s TSL-570 is a high-specification, full-featured instrument suitable for all these applications. It is equipped with an easy-to-use touchscreen display, as well as Ethernet, GPIB, and USB interfaces for remote control. The Wake-on-LAN (WOL) function facilitates remote installation. Its models cover a wavelength range of 1240 to 1680 nm, with high output power.
Model P: ±2 pm wavelength accuracy (4) Wide Tuning Range, Covering 1240 to 1680 nm:
Ext O-Band: 1240 to 1380 nm
O-Band: 1260 to 1360 nm
ES-Band: 1355 to 1485 nm
Ext ES-Band: 1355 to 1505 nm
CL-Band: 1500 to 1630 nm
SCL-Band: 1480 to 1640 nm
U-Band: 1560 to 1680 nm Not applicable to Model P (5) Tunable Laser Enabling Fast Scanning and High Stability: 200 nm/s fast scanning (6) Excellent Accuracy (±2 pm) and Resolution (0.1 pm) (7) Sealed Cavity Ensuring Stability at Each Wavelength (8) Various Wavelength Options from 1240 to 1680 nm (9) Fine-Tuning Scanning Range of 10 GHz
