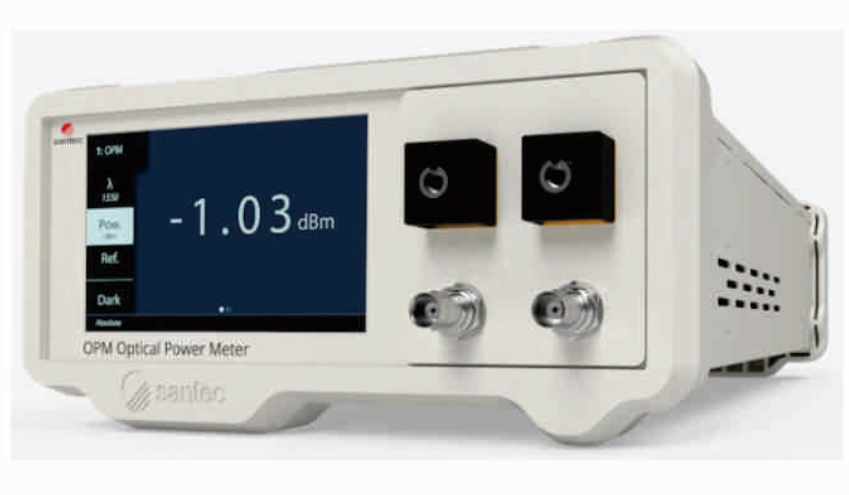

The OPM-200 High Performance Optical Power Meter represents the latest generation of power meters. Its standard 2mm InGaAs detector can measure power as low as -80 dBm (note: corrected from "-1700dBm" as the value is physically implausible for optical power meters) across a wide wavelength range of 840 to 1700 nm. The OPM-50 (note: assumed to be a sibling model of the OPM-200) delivers exceptional accuracy and a 200 μs averaging time, making it a reliable power meter suitable for nearly all applications.
This detector features a free-space design and is compatible with our patented SD Sliding Detector Adapter. Combined with its analog output, it is ideal for automated optical alignment. Additionally, you can choose from 1 to 4 detectors and remote head options to create an ultimate, flexible power meter solution.

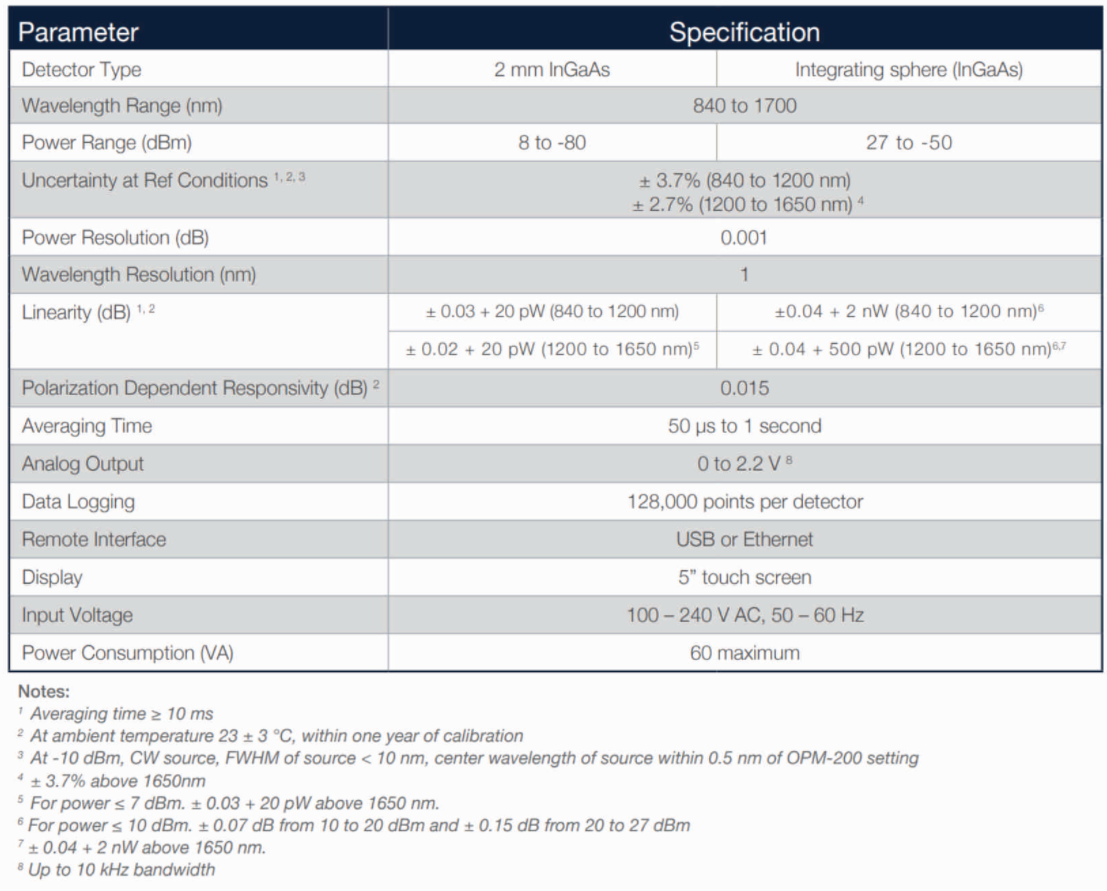

Features & Benefits:
(1) Free-space 2 mm InGaAs detector (2) Wavelength range: 840 to 1700 nm (3) Power range: 8 to -80 dBm (4) Averaging time: 50 μs (note: aligned with the "Features & Benefits" section; the 200 μs in the main text is assumed to be a specification for the OPM-50 model) (5) Touchscreen display (6) USB or Ethernet (interfaces for remote control/data transfer)
Applications:
(1) Optical alignment (2) Transceiver testing (3) Laser and amplifier characterization (4) Transient detection (5) Laboratory and R&D (Research and Development)
